IMM

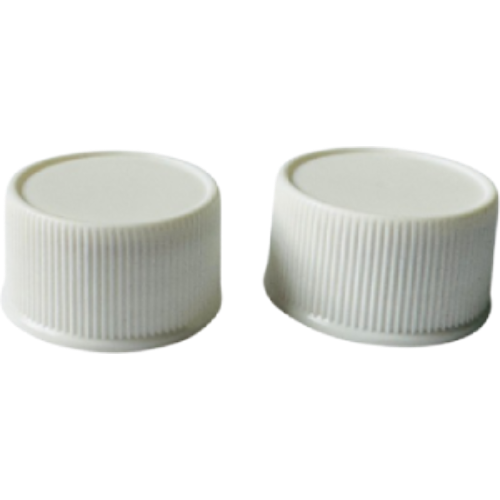

25mm Round Screw Cap Wadded

Parameters Specifications
Total Height (H_O) 16.70 +/- 0.20 mm
Top Outer Diameter 25.80 +/- 0.20 mm
Bottom Outer Diameter 27.40 +/- 0.20 mm
Wad Diameter 23.60 +/- 0.10 mm
Cap Weight 1.50 +/- 0.20 gm
Wad Thickness As per Requirement
Material Poly Propylene

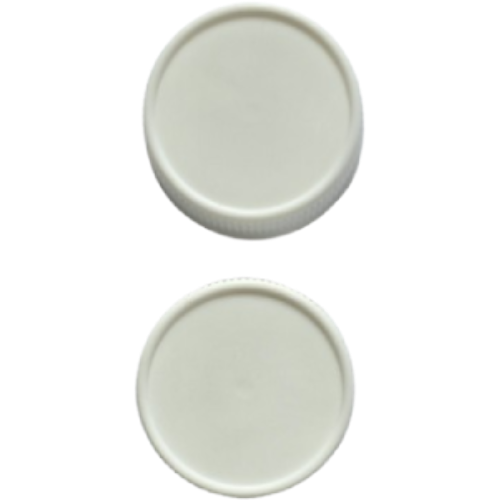

28mm Round Screw Cap Wadded

Parameters Specifications
Total Height (H_O) 17.30 +/- 0.20 mm
Top Outer Diameter 29.60 +/- 0.20 mm
Thread Diameter 26.30 +/- 0.20 mm
Wad Diameter 26.70 +/- 0.10 mm
Total Weight 2.90 +/- 0.20 gm
Wad Thickness As per Requirement

28mm Round Screw Cap with Inner Ring

Parameters Specifications
Total Height (H_O) 13.20 +/- 0.20 mm
Top Outer Diameter 30.50 +/- 0.30 mm
Bottom Outer Diameter 31.70 +/- 0.20 mm
Inner Diameter (I_D) 26.60 +/- 0.20 mm
Thread Diameter (T_D) 28.70 +/- 0.20 mm
Depth 11.50 +/- 0.20 mm
Weight 2.20 +/- 0.30 gm
Material Poly Propylene

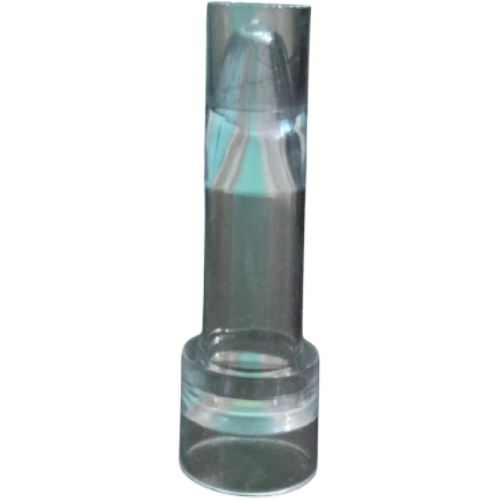

3ml Sample Cup

Parameters Specifications
Total Length 38.00 +/- 0.10 mm
Opening Diameter 10.10 +/- 0.10 mm
Bottom Outer Diameter 16.70 +/- 0.10 mm
Weight 1.60 gm
Overflow Capacity 3.00 ml
Colour Transparent
Material Poly Styrene

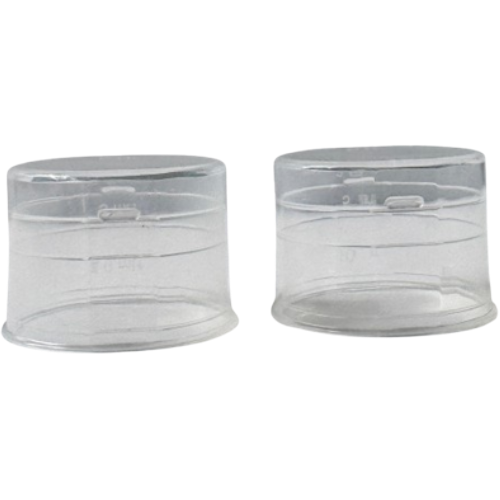

25mm*10ml Round Measuring Cup for ROPP

Parameters Specifications
Total Height (H_O) 19.00 +/- 0.20 mm
Top Outer Diameter 24.90 +/- 0.10 mm
Bottom Outer Diameter 29.80 +/- 0.30 mm
Weight 1.10 +/- 0.10 gm
Marking 2.5ml, 5.00ml, 10.00ml
Colour Transparent
Material Poly Propylene

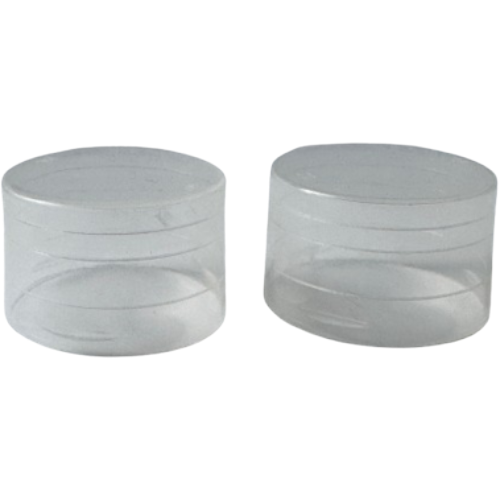

25mm*10ml Round Measuring Cup for ROPP

Parameters Specifications
Total   Height (H_O) 20.50 +/- 0.20 mm
Top   Outer Diameter 26.70 +/- 0.20 mm
Bottom   Outer Diameter 30.20 +/- 0.20 mm
Inner   Diameter (I_D) 26.15 +/- 0.20 mm
Weight 1.40 +/- 0.10 gm
Marking 2.5ml, 5.00ml, 10.00ml
Colour Transparent

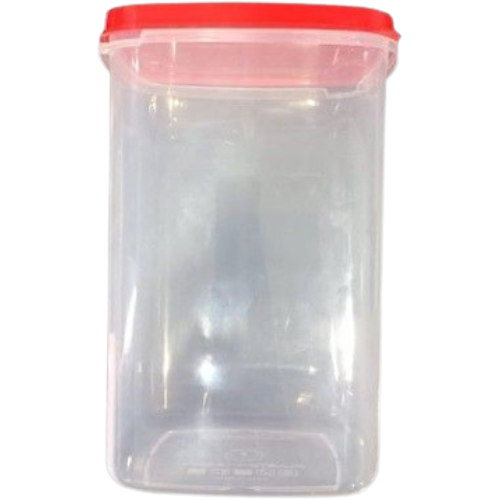

1800ml Air Tight Container

Parameters Specifications
Container   Height (H_O) 179.10 +/- 0.20 mm
LID   Height 9.70 +/- 0.20 mm
Container   Top Outer Diameter 124.00 +/- 0.20 mm
LID   Outer Diameter 122.80 +/- 0.20 MM
Inner   Diameter (I_D) 114.80 +/- 0.20 mm
Container   Weight 94.00 +/- 2.00 gm
LID   Weight 20.00 +/- 2.00 gm
Colour Transparent
